By RubbaSeal

Horizontal Drain Outlet

Our Horizontal Drain Outlet with Leaf Guard is used to form a through wall outlet for dispersing water into a hopper or similar.

Available in 65mm and 100mm Heights, Widths for both are 100mm, lengths are 420mm.

Horizontal Outlet Flashing Kit and Techno Primer are needed to seal this product.

£20.50 - £23.50
Shipping calculated at checkout.
£20.50
£20.50
Availability:
SKU: HD65

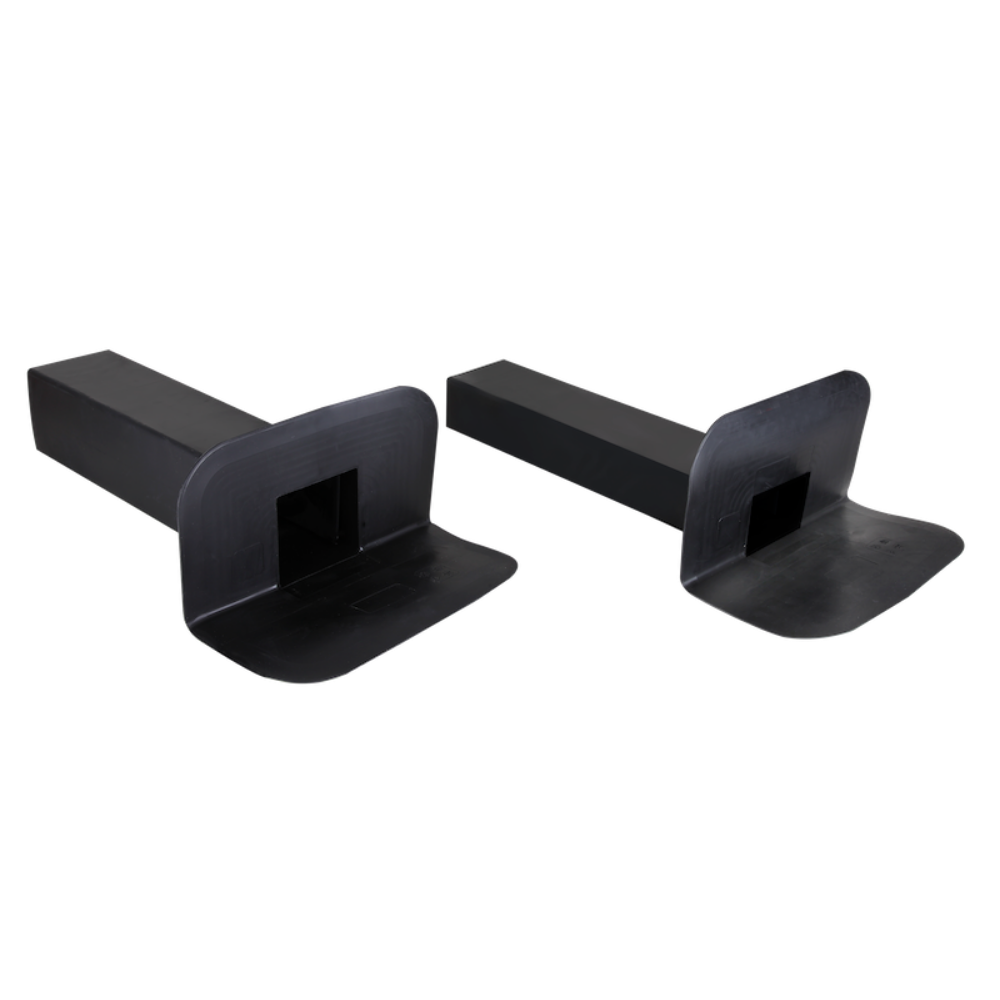

A black, hard plastic rectangular prism opening to a folded larger flat piece of plastic with a hole at the centre.
£20.50
£20.50
Trustpilot
Step by step guide on installing a horizontal rainwater outlet to your next rubber roofing project.

You can download this guide as a PDF here


Step 1

Place the outlet through the wall and mark around it using a crayon or similar, allowing an additional 1cm around the perimeter.
Step 2

Apply primer to the underside of the outlet and the marked area on the rubber using a scrubber pad and handle. Allow both surfaces to dry.
Step 3

Mate the outlet to the rubber and seal in place using a penny and silicone roller.
Step 4

Round the corners of the 18" flashing tape (Horizontal flashing kit) with scissors and neatly position over outlet. Mark the perimeter with crayon.
Step 5

Apply primer to the rubber and outlet using the scrubber pad and handle and extend primer beyond the crayon line by 2cm and into the mouth of the outlet by 100mm.
Step 6

Once touch dry, working from the bottom, position the 18" flashing tape and carefully remove the backing paper. Ensure it is tightly sealed into the corners and use a penny and silicone roller. Carefully cut the sides and top at the aperture and allow flap to drop into the primed outlet.
